Compost infrared biodegrader

Compost infrared biodegrader

Brand ：Thmorgan
Model ：M9000 PLUS

Use of a product

1. Meet the test requirements of GB/T 19277.1-2011 standard;

2. Meet the testing requirements of ISO 14855.1 standard;

3. Can be used for biodegradability research of bio-based materials and products;

4. Can be used for composting biodegradability detection;

5. It can be used for other standard experiments to determine the release of carbon dioxide and methane in simulated aerobic compost;



Second, product characteristics

1. Fully meet the testing requirements of GB/T 19277.1 standard;

2. The design method of solid culture and open oxygen supply is adopted to simulate the strong aerobic environment;

3. High detection accuracy, online measurement of carbon dioxide release;

4. Double display of carbon dioxide, methane concentration and accumulation, which can be derived in the form of charts or curves;

5. Wide detection range, the highest detection limit can reach 10000ppm;

6. Silent design, 9 independent controllable gas supply, sound less than 45db;

7. Air bath temperature control, temperature adjustment accuracy ±0.1℃;

8. Temperature control bin open cover sliding door design, easy to operate;

9. Cloud platform detection, online observation of data and curves;



Third, product principle

This experiment system simulates the process of biodegradation of bio-based materials under aerobic composting conditions. In the aerobic environment, microorganisms consume oxygen and produce carbon dioxide, water and other inorganic substances with bio-based materials as the carbon source. The generated carbon dioxide is monitored in real time by high-precision infrared sensors, and the real-time concentration of detected carbon dioxide is integrated with the flow rate and time to calculate the carbon dioxide release from the biodegradation of the sample. The biodegradation rate is the percentage of the carbon dioxide released by the sample biodegradation and its theoretical carbon dioxide release.



Four technical parameters

1. Working conditions:

1.1 Power supply voltage: AC 220V±10% 50Hz single-phase;

1.2 Working temperature: 15 ~ 30℃;

1.3 Relative humidity: ≤ 80%;

1.4 Durability of instrument operation: it can work continuously for a long time;

1.5 Machine power: 4KW;

1.6 Appearance size (L×W×H) : 1500mm×900mm×900mm;

1.7 Gross weight: 180KG;



2. Oxygen supply system:

2.1 Air supply mode: continuous aeration oxygen supply, built-in air supply pump;

2.2 Air pump control: the air pump is divided into 9 channels, each channel has an independent switch;

2.3 Electronic flowmeter adjustment range: 0.01-500ml /min;

2.4 Gas flow adjustment range: 50-300mL /min;

2.5 With 9 mechanical flowmeters to adjust the flow rate;

2.6 With 9 electronic flowmeters to collect flow rate;



3. Temperature control system:

3.1 Temperature control mode: air bath;

3.2 Set temperature range: room temperature -90 ℃, step by 0.1℃;

3.3 Temperature control accuracy: ≤±0.1℃;

3.4 Temperature control box top sliding door, easy to operate;



4. Reactor system:

4.1 Number of channels: ≥9;

4.2 Reactor volume: ≥2000ml;

4.3 Reactor design: double-layer design;

4.4 Adding water: manually adding water;

4.5 Mixing method: manual mixing;

4.6 Material of reaction bottle: high borosilicate hard glass;

4.7 Gas supply mode: bottom gas supply;

5. Detection system:

5.1 Detection methods: infrared probe to detect carbon dioxide, methane probe to detect methane;

5.2 Number of probes: 1 infrared probe, 1 methane probe;

5.3 Display mode: synchronous dual display of carbon dioxide concentration and methane concentration;

5.4 Detection range: carbon dioxide 0-10000ppm, methane 0-5000ppm;

5.5 Resolution: 1ppm;

5.6 Data collection period: 5 minutes;



6. Software system:

6.1 Software control system with independent intellectual property rights;

6.2 Software can collect data and generate real-time data curve;

6.3 Bearer system: professional operating system such as win7/8/10;

6.4 Data storage: It can be stored in real time in the experiment;

6.5 With a cloud platform, data can be accessed remotely;

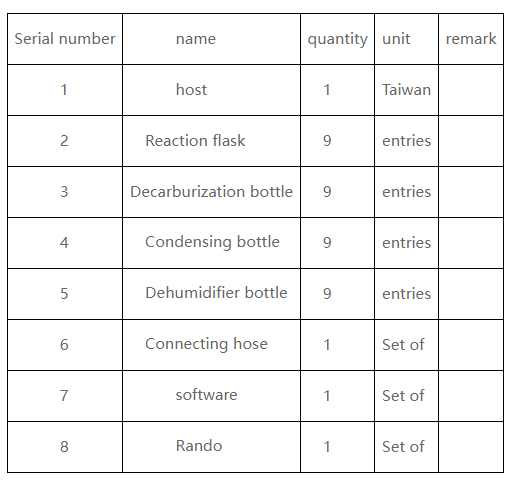

Five standard configurations
