Compost infrared biodegrader

Compost infrared biodegrader

Brand ：Thmorgan
Model ：M2400 PLUS

Use of a product

1. Meet the testing requirements of GB/T19277.1-2011 standard;

2. Meet the testing requirements of ISO14855.1 standard;

3. Meet the testing requirements of JIS K 6953-1 standard;

4. Suitable for external testing by quality inspection institutes;

5. Applicable to third-party external testing services;

6. Suitable for self-test and formulation optimization of bio-based material manufacturers;

7. Suitable for basic research on biodegradation;



Two product characteristics

1. Fully meet the testing requirements of GB/T 19277.1-2011 standard;

2. High throughput, up to 24 channels can be used simultaneously for biodegradability detection;

3. Online determination of the concentration and total amount of carbon dioxide and methane, which can be derived in the form of charts or curves;

4. Wide detection range, the highest detection limit can reach 10000ppm;

5. The design method of solid culture and open oxygen supply is adopted to simulate the strong aerobic environment;

6. Automatic mixing, automatic water, air bath temperature control;

7. Cloud platform detection, online observation of data and curves;



Third, product principle

This experiment system simulates the process of biodegradation of bio-based materials under aerobic composting conditions. In the aerobic environment, microorganisms consume oxygen and produce carbon dioxide, water and other inorganic substances with bio-based materials as the carbon source. The generated carbon dioxide is monitored in real time by high-precision infrared sensors, and the real-time concentration of detected carbon dioxide is integrated with the flow rate and time to calculate the carbon dioxide release from the biodegradation of the sample. The biodegradation rate is the percentage of the carbon dioxide released by the sample biodegradation and its theoretical carbon dioxide release.

Four technical parameters

1. Working conditions:

1.1 Power supply voltage: AC 220V±10% 50Hz single-phase;

1.2 Working temperature: 15 ~ 30℃;

1.3 Relative humidity: ≤ 80%;

1.4 Durability of instrument operation: it can work continuously for a long time;

1.5 Machine power: 7KW;

1.6 Appearance size (L×W×H) : 3500mm×900mm×1600mm;

1.7 Gross weight: 1000KG;



2. Oxygen supply system:

2.1 Pre-decarbonization system: Yes;

2.2 Air supply mode: continuous aeration oxygen supply, built-in air supply pump;

2.3 Air pump control: the air pump is divided into 24 channels, each channel has an independent switch;

2.4 Flow control mode: PLC control, flow can be automatically adjusted according to the set value;

2.5 Flow control accuracy: ±1%;

2.6 Flow collection method: electronic flowmeter real-time collection;

2.7 Flow collection range: 0.01-500ml /min;

2.8 With 24 electronic flowmeters to collect flow;

2.9 Flow control and flow collection operate independently;



3. Temperature control system:

3.1 Temperature control mode: air bath;

3.2 Set temperature range: room temperature -90 ℃, step by 0.1℃;

3.3 Temperature control accuracy: ≤±0.1℃;

3.4 The temperature control box is divided into two layers, the front door is open;

4. Reactor system:

4.1 Number of channels: ≥24;

4.2 Reactor volume: ≥2000ml;

4.3 Reactor design: double-layer design;

4.4 Water adding mode: automatic water adding;

4.5 Mixing method: automatic mixing;

4.6 Mixing shaft design: mixing down;

4.7 Gas supply mode: bottom gas supply;

4.8 Reaction bottle chassis: drawer type design, can be pulled out to push;



5. Detection system:

5.1 Detection methods: infrared probe to detect carbon dioxide, methane probe to detect methane;

5.2 Number of probes: 1 infrared probe, 1 methane probe;

5.3 Display mode: synchronous dual display of carbon dioxide concentration and methane concentration;

5.4 Detection range: carbon dioxide 0-10000ppm, methane 0-5000ppm;

5.5 Resolution: 1ppm;

5.6 Data collection period: 5 minutes;

5.7 Probe dehumidification protection system: Yes;



6. Software system:

6.1 Software control system with independent intellectual property rights;

6.2 Software can collect data and generate real-time data curve;

6.3 Bearer system: professional operating system such as win7/8/10;

6.4 Data storage: It can be stored in real time in the experiment;

6.5 With a cloud platform, data can be accessed remotely.

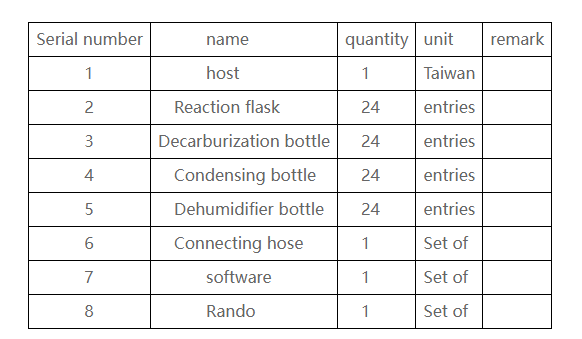

Five standard configurations

Compost infrared biodegrader
