Hydroponic infrared biodegradation instrument
Model ：T1200 PIUS
Use of a product
1. Meet the test standards of GB/T19276.2-2003;
2. Meet the test standards of GB/T33616-2017;
3. Meet the test requirements of GB/T40612-2021;
4. Meet the test requirements of GB/T40367-2021;
5. Meet the ISO14852-1999 testing standards;
6. Meet the testing standards of ISO19679-2020;
7. Can be used for activated sludge biodegradation detection;
8. Can be used for bio-based biodegradability detection;
Second, product characteristics
1. Fully meet the test requirements of GB/T 19276.2 standard;
2. Up to 12 channels can be used simultaneously for biodegradability detection;
3. Online determination of the concentration and total amount of carbon dioxide and methane, which can be derived in the form of charts or curves;
4. The design method of water-based culture and open oxygen supply is adopted to simulate the strong aerobic environment;
5. Air bath temperature control, temperature adjustment accuracy ±0.1℃;
6. Magnetic mixing system to provide long-term mixing;
7. Cloud platform detection, real-time online observation of data and curves;
Principle of three products
This experiment system simulates the process of biodegradation of bio-based materials under aerobic hydroponics. In the aerobic hydroponic environment, microorganisms consume oxygen and produce carbon dioxide, water and other inorganic substances. The generated carbon dioxide is monitored in real time by high-precision infrared sensor, and the real-time concentration of detected carbon dioxide is integrated with the flow rate and time, so as to calculate the carbon dioxide release from the biodegradation of the sample. The biodegradation rate is the percentage of the carbon dioxide released by the sample biodegradation and its theoretical carbon dioxide release.
Four product parameters
1. Working conditions:
1.1 Power supply voltage: AC 220V±10% 50Hz single-phase;
1.2 Working temperature: 15 ~ 30℃;
1.3 Relative humidity: ≤ 80%;
1.4 Power: 4KW;
1.5 Appearance size (L×W×H) : 1900mm×900mm×1380mm;
1.6 Gross weight: 180KG;
2. Oxygen supply system:
2.1 Air supply mode: continuous aeration oxygen supply, built-in air supply pump;
2.2 Air pump control: the air pump is divided into 12 channels, each channel has an independent switch;
2.3 Flow control mode: PLC control, flow can be automatically adjusted according to the set value;
2.4 Flow control accuracy: ±1%;
2.5 Flow collection method: electronic flowmeter real-time collection;
2.6 Flow collection range: 0.01-500ml /min;
2.7 With 12 electronic flowmeters to collect flow;
2.8 Flow control and flow collection operate independently;
3. Temperature control system:
3.1 Temperature control mode: air bath;
3.2 Set temperature range: room temperature -90 ℃, step by 0.1℃;
3.3 Temperature control accuracy: ≤±0.1℃;
3.4 Temperature control box top sliding door, easy to operate;
4. Reaction system:
4.1 Number of channels: ≥12;
4.2 Mixing method: 12 channels magnetic mixing;
4.3 Reaction mode: liquid reaction;
4.4 Volume of reaction bottle: 500ml;
4.5 Decarbonization system: Yes;
4.6 Condensing system: Yes;
5. Detection system:
5.1 Detection method: Detection method: infrared probe to detect carbon dioxide, methane probe to detect methane;
5.2 Number of probes: 1 infrared probe, 1 methane probe;
5.3 Display mode: synchronous dual display of carbon dioxide concentration and methane concentration;
5.4 Detection range: 0-5000ppm;
5.5 Resolution: 1ppm;
5.6 Data collection period: 5 minutes;
5.7 Probe dehumidification protection system: Yes;
6. Software control system:
6.1 Software control system with independent intellectual property rights;
6.2 Software can collect data and generate real-time data curve;
6.3 Bearer system: professional operating system such as win7/8/10;
6.4 Data storage: It can be stored in real time in the experiment;
6.5 With a cloud platform, data can be accessed remotely.

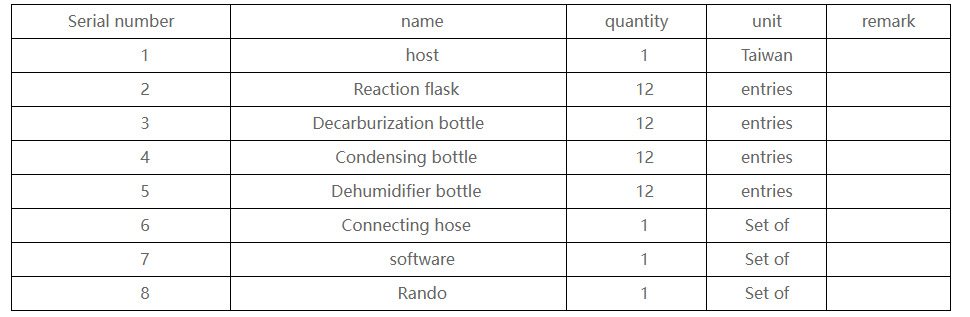

Five product configurations
Hydroponic infrared biodegradation instrument
