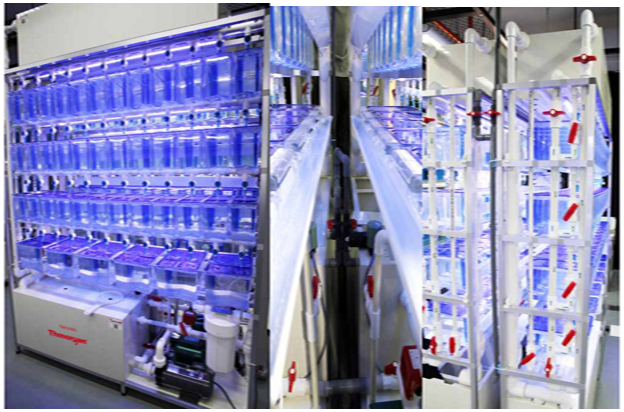

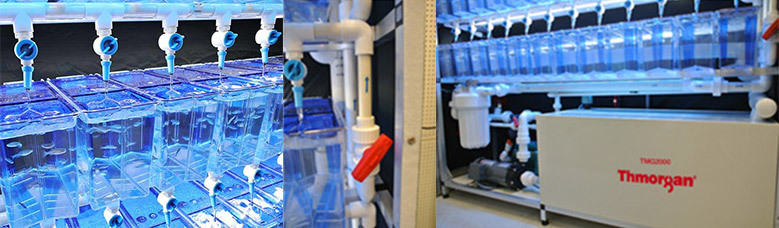

Zebrafish breeding system
Model：TMG2000
Product use:
It is suitable for marine aquaculture of various aquatic organisms.
Product features:
1. Double-row design, larger breeding capacity;
2. Suitable for aquaculture of various aquatic organisms;
3. Mortise and tenon structure design, five floors, four floors and three floors can be converted, and the disassembly and assembly are flexible;
4. Automatic completion of water inlet, make-up, water circulation, temperature regulation, intermittent light regulation, etc;
5. Water treatment includes three-layer pre-filtration system and three-layer water tank filtration system;
6. The water circulation adopts overflow circulation mode, which can automatically remove solid residues and give full play to the high efficiency water circulation effect;
7. The fish tank is made of polycarbonate (PC), FDA approved food grade, and can withstand high pressure steam sterilization;
8. The fish tank is designed with inverted "V" structure, which is convenient for the rapid discharge of impurities;
9. With water quality detection and temperature control function;
10. It has remote monitoring function;
Technical parameters：
1. System support:
1.1 Material: reinforced aluminum alloy;
1.2 Structure: mortise and tenon structure design, five floors, four floors and three floors can be converted, and disassembly is flexible;
1.3 Balance: with horizontal adjustment angle;
1.4 Dimensions: 176CM long (excluding control box), 80CM wide, 240CM high
2. Fish tank:

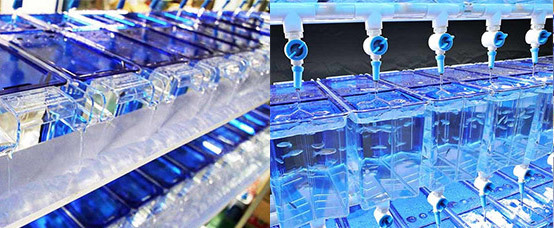

2.1 Material: polycarbonate (PC) material;
2.2 It is the food grade approved by FDA and can withstand high pressure steam sterilization;
2.3 Volume: 2L, 4L, 8L optional;
2.4 The fish tank is self-cleaning, and the baffle and upper cover can be removed;
2.5 The fish tank is of self-cleaning V-shaped design, convenient for cleaning;
3. Water circulation system:
3.1 Including water supply, gas supply pipeline and power system;
3.2 Circulating pump: water circulating power, external type, acid and alkali resistant, water flow: ≥ 75L/min;
3.3 Air pump: air supply, can be started and stopped manually, air flow: ≥ 30L/min;
3.4 Pipeline material: white polyvinyl chloride (UPVC), without plasticizer;

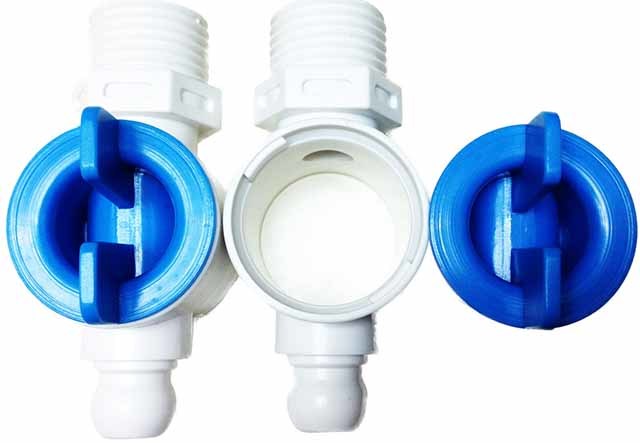

3.5 The water supply pipeline is independently equipped with 24 water outlet regulating valves on each floor, which can be fully opened or closed;
3.6 Each layer of pipe fittings and water outlet regulating valve can be removed for cleaning, maintenance and replacement;
4. Water treatment system:
4.1 Pre-filtration system: from tap water to water tank, it passes through three pre-filtration columns;
4.2 Water tank filtration: physical filter material, biochemical cotton and activated carbon adsorption are used for filtration;
4.3 Ultraviolet germicidal system: one 40W ultraviolet germicidal lamp with a lamp life of more than 8000 hours;
4.4 Heating system: electronic thermostat, 600W quartz tube heating;
4.5 Lighting system: white light belt, with longer service life and good waterproof performance;
4.6 Monitoring system: automatically monitor PH pH and EC conductivity.
5. Automatic control system:
5.1 It can automatically control water circulation, ultraviolet sterilization, temperature regulation, intermittent light regulation, etc;
5.2 Including splash-proof structure and leakage power supply device;
5.3 Circulation pump control, can be started or stopped manually, and can be started automatically when power is cut off;
5.4 The water level height can be controlled. When the water level of the system is too low, the light will alarm;
5.5 Light timing switch control.
6. Remote monitoring system:
6.1 The remote monitoring system is easy to operate, rapid and accurate in numerical transmission, and realizes real-time monitoring of the whole process of aquaculture;
6.2 Users can master the aquaculture water quality environmental data in real time through computer, PDA, mobile phone and other information terminals;
Standard configuration:
1. System support (aluminum alloy material);
2. Fish tank (volume optional);
3. Water circulation system;
4. Water treatment system;
5. Electric cabinet;
6. Fish tank configuration:
|
Storey height |
Volume of fish tank (L) |
Number of fish tanks(pcs) |
Water valve |
air valve |
LED light |
|
first floor |
8 |
12 |
24 |
24 |
2 |
|
second floor |
8 |
12 |
24 |
24 |
2 |
|
third floor |
4 |
24 |
24 |
24 |
2 |
|
fourth floor |
4 |
24 |
24 |
24 |
2 |
|
fifth floor |
4 |
24 |
24 |
24 |
2 |
Optional configuration:
1. External sink;
2. Chiller: refrigeration range: 10 ℃ to room temperature;
3. PH regulating device;
4. Conductivity regulating device;
5. Dissolved oxygen measuring device;
